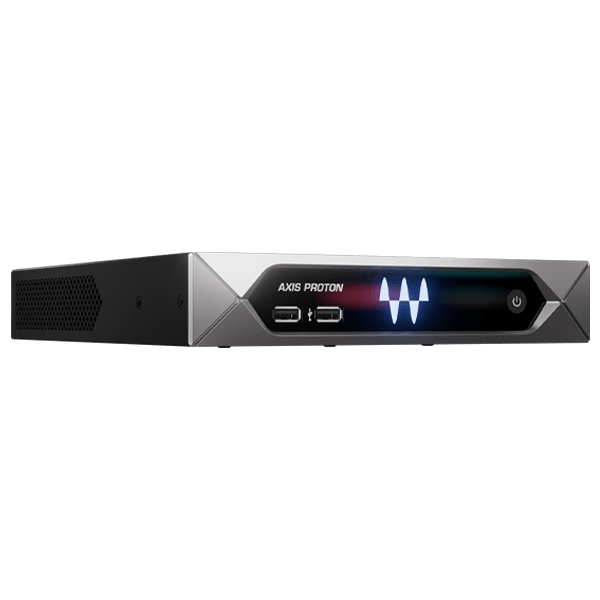

Axis Proton
Compact turnkey computer optimized to run Waves audio applications
USW379-700C-352
[{"nodeGUID":"c515cd0f-b28f-4408-bd33-8df728a545fd","nodeID":321,"documentName":"Axis Proton","documentID":0,"documentUrlPath":"/hardware/axis-proton","thumb":"/images/products/hardware/600/axis-proton.png","msrp":899.000000000,"skuPrice":899.000000000,"discount":0,"mainOrder":0,"includedInSBS":0,"skuid":768,"skuName":"","skuParentSKUID":0,"skuEnabled":true,"skuNumber":"USW379-700C-352","note":"","documentPageDescription":"Axis Proton is a custom-designed computer, optimized through meticulous selection of components to run Waves applications such as the 16-channel eMotion LV1 live mixer and the 16-channel SuperRack live plugin rack.","tagline":"","departmentID":9,"gsfCategory":"","fixedPosition":false,"expectedShipping":"","productID":300,"upgrades":false,"demoType":0,"isInventory":false,"manualPDF":"https://assets.wavescdn.com/pdf/hardware/axis-proton.pdf","sbsIncludedIn":0,"addToCartStatus":0,"isWishlist":true,"couponCode":"","couponCampaignID":0,"couponPrice":0.00,"couponStripeHTML":"","numberOfLessons":0,"courseDurationHours":0.00,"numberOfPlugins":0,"upgradeTargetID":0,"parentSKUNumber":"","categoryDisplayName":"","isProductOptions":false,"variantsMinimalPrice":0,"isVariantsPriceSame":false,"isPreorder":false,"optionOrder":0,"optionName":"","reviewsTotal":0,"rating":0,"saleEndDate":"0001-01-01T00:00:00","badgeClass":"","badgeText":""}]
""
Product, Included In, Support, Accessories
High-Performance Computer for Your
Compact eMotion LV1 or SuperRack System

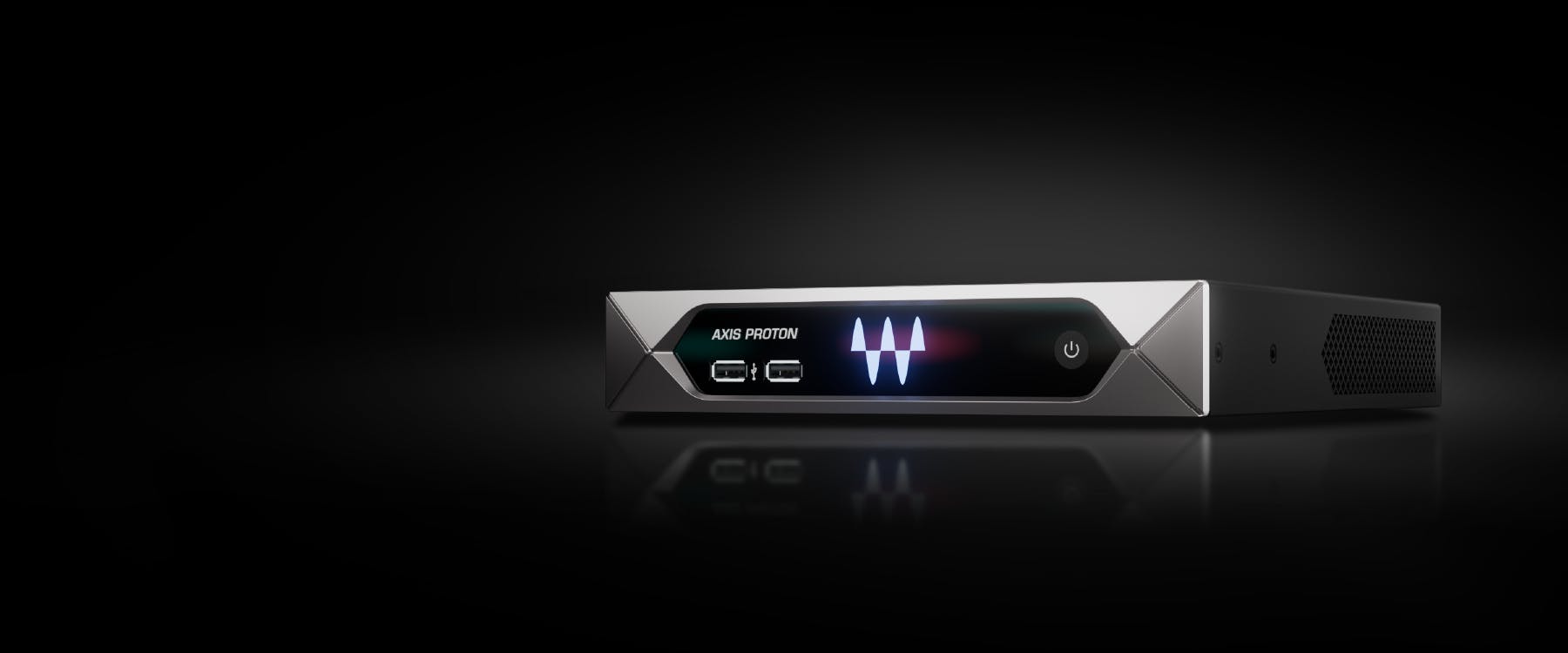

The custom-designed Axis Proton computer can provide the “brain” for a SoundGrid system, thanks to seamless integration with SoundGrid I/Os and servers. This rugged, high-performance package’s meticulous component selection optimizes performance for Waves audio applications.
To experience the ultimate, compact live mixing system for 32-channel live sound, combine the Axis Proton with the Proton SoundGrid Server and eMotion LV1 live 32-channel mixer—done.
- 1U half-rack case, rack-mountable with optional rack ears
- Sleek, elegant, durable industrial design with aluminum casing
- 8 GB RAM, 256 GB high-speed internal SSD
- Intel® Celeron® Processor J-Series, 4 cores/4 threads
- Pre-loaded with Microsoft Windows 10

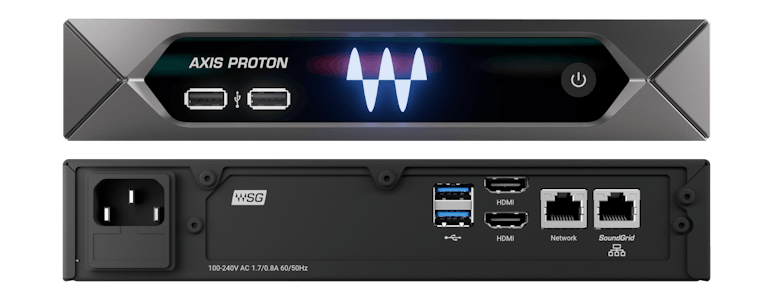

- 2 x 1 GbE Ethernet Ports, 2 x HDMI ports, 4 USB2/3 ports
- Ultra-low latency—0.8 milliseconds at 48 kHz
- Free 6-month warranty, extended warranties available
[]
Loading....
Support
All support details and notes for Axis computers can be found on Waves Axis Computers – Support Notes.
Supported Configuration: up to 32 Stereo Channels @ 48kHz
CPU: Intel® Celeron J4125
RAM: 8 GB
Motherboard: QBI-2145A
LAN Card: Intel I211/Realtek RTL8411
Dimensions
Length: 22 cm / 8.7 in
Height: 4.2 cm / 1.7 in
Depth: 27.7 cm / 10.9 in
Device Weight: 2.1 kg / 4.6 lb
Package Weight: 3.2 kg / 7 lb
Power Consumption:
110/220V 15 W
Operating Environment temperature range:
50° to 95°F / 10° to 35°C
Max Environment temperature:
104°F / 40°C
Axis Proton A&E Specs:
