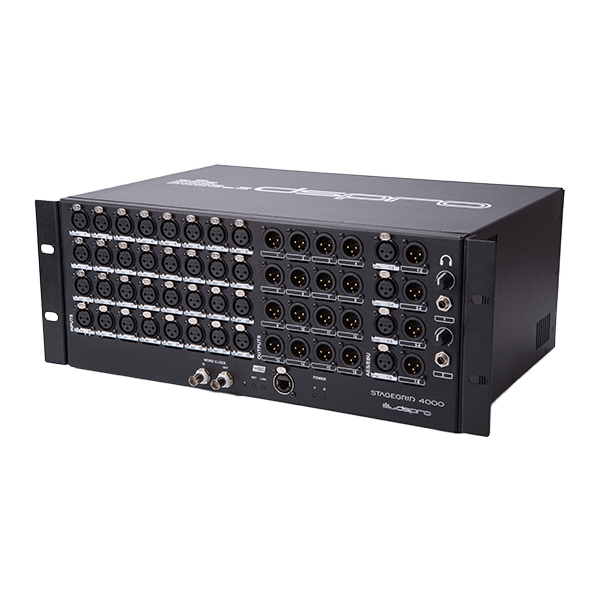

DSPRO StageGrid 4000
Massive SoundGrid I/O expansion, ideal for eMotion LV1
USW379-700C-313
[{"nodeGUID":"727937be-1119-4a25-935a-4c300a83c747","nodeID":342,"documentName":"DSPRO StageGrid 4000","documentID":0,"documentUrlPath":"/hardware/dspro-stagegrid-4000","thumb":"/images/products/hardware/600/dspro-stagegrid-4000.png","msrp":5899.000000000,"skuPrice":5899.000000000,"discount":0,"mainOrder":0,"includedInSBS":0,"skuid":680,"skuName":"","skuParentSKUID":0,"skuEnabled":true,"skuNumber":"USW379-700C-313","note":"","documentPageDescription":"SoundGrid stagebox, perfect for use with the eMotion LV1 live mixer. Crafted with supreme sound quality, reliability and integration at its core, with 32 mic/line ins, 16 analog outs and AES/EBU ins/outs, all digitally controlled.","tagline":"","departmentID":9,"gsfCategory":"","fixedPosition":false,"expectedShipping":"","productID":321,"upgrades":false,"demoType":0,"isInventory":false,"manualPDF":"https://assets.wavescdn.com/pdf/hardware/dspro-stagegrid-4000-v2.pdf","sbsIncludedIn":0,"addToCartStatus":0,"isWishlist":true,"couponCode":"","couponCampaignID":0,"couponPrice":0.00,"couponStripeHTML":"","numberOfLessons":0,"courseDurationHours":0.00,"numberOfPlugins":0,"upgradeTargetID":0,"parentSKUNumber":"","categoryDisplayName":"","isProductOptions":false,"variantsMinimalPrice":0,"isVariantsPriceSame":false,"isPreorder":false,"optionOrder":0,"optionName":"","reviewsTotal":0,"rating":0,"saleEndDate":"0001-01-01T00:00:00","badgeClass":"","badgeText":""}]
""
Product, Support, Setups

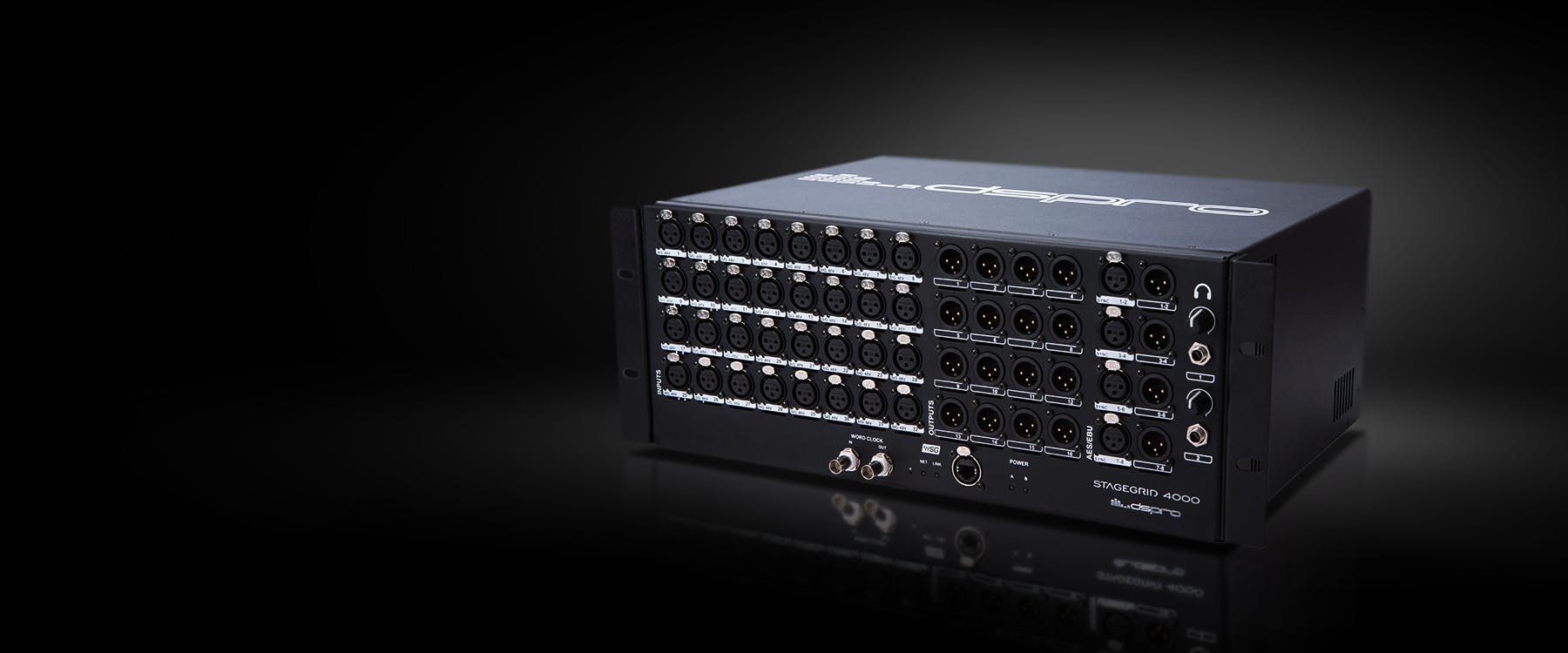

SoundGrid Stagebox with Massive Channel Count
Featuring high-quality preamps that deliver a dynamic, clear sound, this SoundGrid stagebox complements live mixers like the eMotion LV1 with 32 mic/line ins, 16 analog outs, and AES/EBU ins/outs—all digitally controlled, and housed in a rugged, road-worthy, 4U chassis.
StageGrid 4000 interfaces seamlessly with the Waves ecosystem, and provides a versatile solution that harnesses SoundGrid technology’s modularity, power, and speed for live sound applications.
- Supports sample Rates from 44.1 kHz to 96 kHz
- SoundGrid stagebox is perfect for the eMotion LV1 mixer
- 2 stereo headphone outs with individual volume controls
- 32 analog mic/line inputs with XLR connectors
- Word Clock input and output, with BNC connectors
- 16 analog line outputs with XLR connectors
- Ethernet connection for SoundGrid connectivity
- 4 stereo AES/EBU digital inputs and outputs, with XLR connectors
- Redundant AC power supply for live performance security

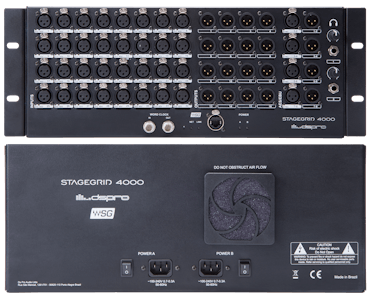

- Robust 4U rack-mountable chassis and premium components
Support
General
- 32 Analog mic/line Inputs
- 16 Analog line outputs
- 4 Stereo AES / EBU Digital inputs
- 4 Stereo AES / EBU Digital outputs
- Configurable Sample Rate of 44.1, 48, 88.2 and 96kHz
- Two headphone outputs
- Wordclock IN\OUT
- A SoundGrid Ethernet port
- Redundant Power supply
Analog Inputs
- Impedance: 2.86 kOhms
- Gain range: -4 dB to 60 dB
- Max input level: 28 dBu (-4 dB gain)
- Dynamic range: 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted)
- THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
- Equivalent input noise: -128 dBu (60 dB gain, A-weighted, 150 ohms)
- Frequency response: +/- 0.1 dB (20 Hz to 40 kHz at 96 kHz sampling rate)
- Phase Shift: <10° at 20 Khz
Analog Outputs
- Output impedance: 50 ohms
- Max output Level (0dBFS): 24 dBu
- Dynamic range: 115 dB (-60 dBFS, 1 kHz, A-weighted)
- THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
- Frequency response: +/- 0.1 dB (20 to 40 kHz at 96 kHz) Phase shift: <5° at 20 Khz
AES/EBU IN/OUT
- Standard: AES3 (2009)
- Sample rates: 44.1, 48, 88.2 and 96 kHz
- Impedance: 110 ohms
Headphones
- Output Power: 150 mW per channel on 16 ohms
- Dynamic range: 100 dB
SoundGrid
- Interface: Gigabit Ethernet
- Connector: Neutrik EtherCON
Word Clock
- Connector: BNC
- Impedance: 75 Ohms
- Voltage level: 5V TTL
Power supply
- Voltage: 110 or 240 VAC
- Frequency: 50 Hz or 60 Hz Power: 60 W
Environmental specifications
- Operating temperature: 0°C to 40°C
- Relative humidity: Up to 90% non-condensing
Dimensions
- Height: 176 mm / 6.92 in (4RU)
- Width: 430 mm / 19.92 in (for 19” rack)
- Depth: 300 mm / 11.81 in (not including connectors)
- Weight: 7.89 Kg
Setups
In the setup diagram below, on-stage instruments and microphones are connected to the StageGrid 4000 which is remotely controlled from the LV1 mixer at front-of-house. The audio is processed on a SoundGrid Server and then outputted to stage-monitors and/or the PA system. An optional DAW computer (with the SoundGrid Driver installed) can be added to the setup for recording the show, playing back audio and for virtual soundcheck.
- Host computer running the eMotion LV1 mixer (see system requirements)
- DS Pro StageGrid 4000 stagebox
- SoundGrid Server (add a second server for processing redundancy)
- SoundGrid-qualified network switch
For complete information on supported cable types and lengths, visit the Ethernet Cables for SoundGrid Systems page.
