eMotion LV1 Session Editor

Prepare eMotion LV1 live mixer sessions offline, on any laptop or desktop
Image for eMotion LV1 Session Editor

Please note: The LV1 Session Editor does not pass audio. Use it to configure your session before the show. Learn more about the full version of the eMotion LV1 live mixer here.

Come to the Show Prepared: Set Up Your LV1 Mixer Sessions Offline, Anytime, Anywhere.


This software is an offline Session Editor for the Waves eMotion LV1 live mixer. It helps you save time, and probably money, by allowing you to complete your most time-intensive prep tasks offline, before you arrive at the venue.

You can configure every aspect of the eMotion LV1 mixer session you’ll be using at your show, from any computer, anywhere. When you get to the venue, load the offline session file in your main LV1 software. All session information will be in place, so you’ll just need to connect I/Os and assign servers and controllers.

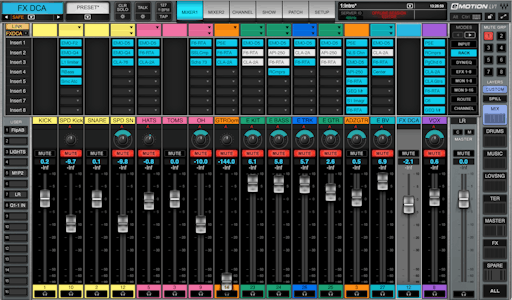

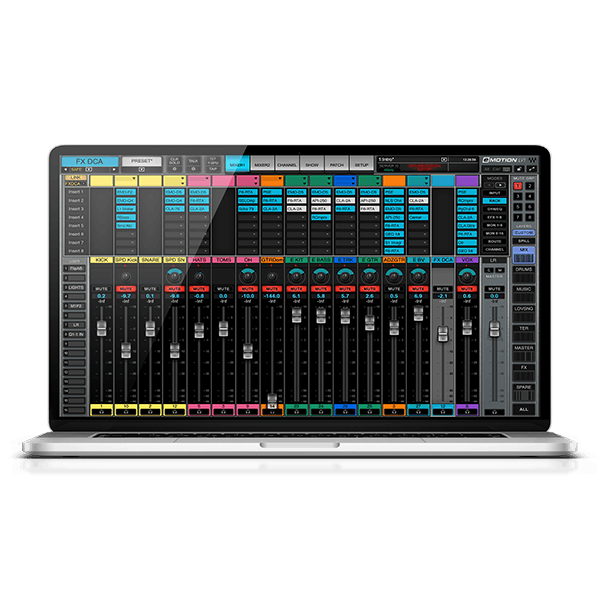

The LV1 Session Editor has the exact same interface as the main version of the LV1 software mixer, so moving a session between the two is transparent. You can save an LV1 session from the main LV1, edit it offline in the Session Editor, resave it, and reload it in the main mixer. If you already have presets, you can incorporate these into your offline session.

Now you can configure all of the following ahead of the show, with just a laptop:

  • Assign and configure offline I/O devices and I/O control panels
  • Configure plugin racks; set and save plugin parameters
  • Configure all mixer preferences, custom layers, etc.
  • Create routing to, from, and between devices
  • Name all channels, buses, devices, and delay groups
  • Save all scenes and user-assigned keys

eMotion LV1 Key Features

Please note: All information below refers to the full version of the eMotion LV1 live mixer. The eMotion LV1 Session Editor is identical to the full version of eMotion LV1, except it does not pass audio.

 eMotion LV1 64 CHeMotion LV1 32 CHeMotion LV1 16 CH
Channels (Stereo/Mono)643216
Auxes (Stereo/Mono) – Total24248
Monitor Auxes1616-
FX Auxes888
Audio Groups88-
Master ChannelsL/R/C/MonoL/R/C/MonoL/R
Matrixes (Stereo/Mono)888
  • Windows/Mac 64 bit-compatible
  • 32-bit floating point mix engine, with latency as low as 0.8 ms
  • Sample rate: 44.1–96 kHz
  • Patch up to 16 hardware and software SoundGrid I/Os
  • Share I/Os – stageboxes, DAWs, computers – between multiple LV1 systems
  • FOH and monitor engineers can share the same stagebox between two LV1 mixers, with separate gain control for each engineer
  • Run up to 8 plugins per channel
  • All processing is done on an external SoundGrid DSP server
  • Connect LV1 to up to 4 Waves SoundGrid servers (plus four redundant servers), for practically unlimited plugin processing power
  • MyMon personal monitor mixing app for mobile devices – designed for eMotion LV1
  • NEW: MyFOH Remote Control App for eMotion LV1
  • Tactile control with the Waves FIT controller: Connect up to 2 FIT controllers, for up to 32+2 physical faders
  • Compatible with up to four multi-touch screens, as well as diverse hardware control surfaces
  • Touch-friendly interface
  • 6 control windows: Mixer 1, Mixer 2, Channel, Show, Patch, Setup
  • Different control windows can run simultaneously on different touchscreens
  • Each Mixer window provides 8 layers, each with up to 16 channel strips
  • Each channel strip provides control over its channel’s input, dynamics/EQ/filters, plugin rack, sends and routing
  • Create your own custom layers for super-quick personalized workflow
  • Custom colors for channels (FIT controller reflects colors)
  • Up to 1000 scenes, including recall filters and recall-safe options
  • Sends-on-faders mode per Mixer window for each of the 16 aux busses, with auto cue on aux
  • MIDI control over scene change
  • Preamp control and digital trim per channel input
  • Automatic latency compensation on internal mix busses
  • Delay groups for output delay alignment
  • Multiple outputs available per channel, each with digital trim per output
  • Advanced stereo Imager, including balance, rotation, width and L/R panning
  • 16 link control groups, providing global control over inputs, plugins, EQ, dynamics and sends for assigned channels
  • DCA fader per link control group
  • DCA spill – populate layers with DCA-linked channels
  • 8 mute groups, with an additional Mute All output option
  • Global tempo control per scene; Tap tempo available on main toolbar
  • Show Lock option for locking plugin instantiations, external routing, and complete surface lock
  • Comprehensive meter and clip settings
  • 16 user-assignable keys for personalization of control over mixer operation (e.g., open specific plugin, tap tempo, recall specific scene)
  • Solo-in-place option, with automatic solo-safe sources and destinations
  • Copy & paste channel names, processing and routing
  • A/B input options, for quick patch changes
  • External insert for outboard gear connection, as part of the plugin rack chain
  • Offline operation mode, including offline configuration and patching of I/O devices
  • Complete channel processing presets, compatible with Waves SuperRack and StudioRack presets
  • Smooth integration with the separately purchased Dugan Speech plugin for auto-mixing multiple mics
